Wheel Weights

Tractor Wheel Weights.  Construction Equipment Weights.  Idler Weights.
Please contact us if you don't see what you are looking for.
We have many patterns still available to produce weights for older models and brands.

Visit the MOUNTING PATTERNS page to determine or verify the wheel weight mounting pattern on your specific model.

Not everything we can produce or have available is listed on our website.
If you can't find what you are looking for, please contact us for more information.

TF 1040 Wheel Weight for Massey Ferguson, Challenger and others.
Color:
GRAY

Weight:
500 lbs each
Will Stack

226 kg each

Number of Mount Holes: 4
Mount Hole Centers: 12 ¾
Inner Diameter: 15 ¾
Outer Diameter: 28 ¼


TF 138 Wheel Weight for New Holland, Case-IH, Massey, Mahindra, and others.
Weight:
150 lbs each
Will Stack

68kg each

Number of Mount Holes: 3,4
Mount Hole Centers: 3@12 ¾, 4@8 ½ - 13 ⅜
Inner Diameter: 10 ½
Outer Diameter: 23
Replaces: Case A33178 and others


TF 148 500 Pound Weight for Deere, Case and others.
Color:
Color Matched

Weight:
500 lbs each
Will NOT Stack
Number of Mount Holes: 4
Mount Hole Centers: 4@ 9 ½ to 11 ½"
Inner Diameter: 11 ½"
Outer Diameter: 21"
Thickness: 10"

Farm Tractors and Industrial Equipment.


TF 170 Tractor Wheel Weight
Color:
COLOR MATCHED

Weight:
1050 lbs each
Will NOT Stack

INSIDE REAR WEIGHT FOR 38" 42" AND 46" CAST WHEELS

Mount Hole Centers: 4@8 ⅝"
Inner Diameter: 10"
Outer Diameter: 26"
Thickness: 11.5"
Weight: 1050 pounds

International, Case, CaseIH


TF 171 Inside Rear Wheel Weight
Color:
COLOR MATCHED

Weight:
600 lbs each
Will NOT Stack

INSIDE REAR WEIGHT FOR 38" 42" AND 46" CAST WHEELS

Mount Hole Centers: 4@8 ⅝"
Inner Diameter: 10"
Outer Diameter: 26"
Thickness: 7"

International, Case, CaseIH


TF 172 355 Pound Wheel Weight
Color:
Color Matched

Weight:
355 lbs each
Will NOT Stack
Number of Mount Holes: 4
Mount Hole Centers: 4@ 9 ½ to 11 ½"
Inner Diameter: 10"
Outer Diameter: 20 ½"
Thickness: 7"

Farm Tractors and Construction Equipment.  Orchard Tractors.


TF 178 Wheel Weight for Case-IH, New Holland, Kubota, others.
Weight:
1000 lbs each
Will NOT Stack

453kg each

Number of Mount Holes: 3
Mount Hole Centers: 22 ¼
Inner Diameter: 17 ½
Outer Diameter: 29 ½
Thickness: 12 ⅞
Replaces: 405830A1 & 199403A2 and others.


TF 180 Wheel Weight for John Deere, CNH, Deutz Fahr, others.
Weight:
525 lbs each
Will Stack

Color Matched to your Brand.

Mount Hole Centers: 14 ⅝
Inner Diameter: 13
Outer Diameter: 28
Thickness: 7
Weight: 500


TF 1814 Wheel Weight - Utility Tractors
Weight:
345 lbs each
Will NOT Stack

Perfect for Orchards and other narrow applications.

Number of Mount Holes: 4
Mount Hole Centers: 9 - 11 ¼" (Slotted)
Inner Diameter: 10 ¾
Outer Diameter: 21 ⅜
Thickness: 7


TF 183 Wheel Weight for Case, New Holland, Kubota, others.
Weight:
505 lbs each
Will Stack

227kg each

Number of Mount Holes: 3
Mount Hole Centers: 22 ¼
Inner Diameter: 16
Outer Diameter: 29 ½
Thickness: 7 ¼
Replaces: 405829A1 & 87310406 and others.


TF 184 Wheel Weight for Mahindra, Kioti, Case, Branson, Cub Cadet and others.
Weight:
80 lbs each
Will Stack

Fits Many Models.

Hole Pattern: Slotted 3@9 ¼-12 ½, 4@9 ¼-10 ¼
Number of Mount Holes: 3,4
Inner Diameter: 8 ½
Outer Diameter: 17 ½
Thickness: 2 ⅞

We can color match to your brand.


TF 301 Wheel Weight for Case, New Holland, Kubota, others.
Weight:
144 lbs each
Will Stack

65kg each

Number of Mount Holes: 4
Mount Hole Centers: Slotted 9 ½ - 11 ½
Inner Diameter: 11 ½
Outer Diameter: 21 ½
Thickness: 4


TF 308 TF 308
Weight:
170 lbs each
Will Stack
Number of Mount Holes: 4
Mount Hole Centers: 4@8 ½"
Inner Diameter: 9"
Outer Diameter: 16 ¾"
Thickness: 5"

Fits many Massey Ferguson Tractors, Industrial Tractors, and Backhoe-Loader Models.


TF 332 Massey Wheel Weight
Color:
Will Match

Weight:
525 lbs each
Will NOT Stack

Massey Ferguson Wheel Weight

Number of Mount Holes: 3
Mount Hole Centers: 3@17 ½
Inner Diameter: 12 ¾
Outer Diameter: Tapers 23-25


TF 337 Wheel Weight for Case, New Holland, others.
Weight:
300 lbs each
Will Stack

136 kg each.

Number of Mount Holes: 3
Mount Hole Centers: 14 or 12 ¾
Thickness: 6 ¾


TF 338 Wheel Weight, Case, New Holland, Massey, others.
Weight:
150 lbs each
Will Stack

68kg each

Number of Mount Holes: 3,4
Mount Hole Centers: 3@12 ¾, 4@12 ¼-14 ½
Inner Diameter: 10 ½
Outer Diameter: 21 ¾


TF 340 Agco Wheel Weight
Color:
SILVER-GRAY

Weight:
513 lbs each
Will Stack

Agco, Massey, Challenger, others.

Number of Mount Holes: 3
Mount Hole Centers: 3@16 ¼
Inner Diameter: 15 ¾
Outer Diameter: 32
Thickness: 3 ¼

For models with hole mounting patterns of 4@12 3/4" use TF-341 first.

Replaces 4290866M3

TF 341 STARTER WEIGHT
Color:
GRAY-SILVER

Weight:
107 lbs each
Will Stack

Massey Ferguson, Challenger, others.

Number of Mount Holes: 4
Mount Hole Centers: 4@ 12 ¾
Inner Diameter: 15 ⅝
Outer Diameter: 21 ¾
Thickness: 2 ¼

Drilled and Tapped to use as a starter for TF-340.  Can also be used alone or stacked.

Replaces 4290867M3

TF 424 Wheel Weight Case, IH and others.
Weight:
125 lbs each
Will Stack

Fits many CaseIH, Challenger, MF and Kubota models

Number of Mount Holes: 4
Mount Hole Centers: 11 ⅜ and 12 ¾
Inner Diameter: 11
Outer Diameter: 20
Thickness: 2 ¾


TF 509 Wheel Weight for CNH, Agco, Massey, others.
Weight:
75 lbs each
Will Stack

34kg each

Number of Mount Holes: 3,4
Mount Hole Centers: 4@9 ¼ or 3@10 ⅜-12 ½
Inner Diameter: 10
Outer Diameter: 17 ½
Thickness: 2 ½
Replaces: CNH 718470026


TF 510 Factory Type Kubota Tractor Wheel Weight.
Weight:
60 lbs each
Will Stack

27kg each

Number of Mount Holes: 3
Mount Hole Centers: 8 ⅞
Inner Diameter: 9 ½
Outer Diameter: 17 ¾
Replaces: KUBOTA L8066


TF 511 Wheel Weight for Kubota, Deere, Case and others
Color:
COLOR MATCHED

Weight:
158 lbs each
Will Stack

Heavier Version of TF-512, T19293, R213907, LM8124

Hole Pattern: 4@9 ½", 4@11-11 ¾", 4@11-12 ¾"
Number of Mount Holes: 4
Inner Diameter: 9 ¾"
Outer Diameter: 21"
Thickness:
Requirements: Requires 26" or larger wheel.

Heavier version of TF-512.


TF 512 Factory Type weight for Deere, CNH, Kubota, others.
Weight:
105 lbs each
Will Stack

48kg each

Number of Mount Holes: 4
Mount Hole Centers: 9 ½, 11, 11 ½
Inner Diameter: 10 ¼
Outer Diameter: 18
Thickness: 5


TF 514 Factory Type Wheel Weight for Kubota, Deere, others.
Weight:
164 lbs each
Will Stack

79kg each

Number of Mount Holes: 4
Mount Hole Centers: 11 ½
Inner Diameter: 10 ¼
Outer Diameter: 21
Thickness: 4 ¾

Color matched to your brand.


TF 600 Deere Wheel Weight
Color:
Yellow

Weight:
140 lbs each
Will Stack

Deere Wheel Weight

Number of Mount Holes: 3
Mount Hole Centers: 3@16 ½
Inner Diameter: 9 ½
Outer Diameter: 24
Thickness: 3

Factory Type Wheel Weight for Cast Wheels.


TF 603 Wheel Weight for John Deere, Mahindra, others.
Weight:
115 lbs each
Will Stack

52kg each

Mount Hole Centers: 16 ½
Inner Diameter: 11 ½
Outer Diameter: 20 ½
Thickness: 4


TF 615 Lawn and Garden Weight
Color:
Color Matched

Weight:
70 lbs each
Will Stack
Number of Mount Holes: 4
Mount Hole Centers: 6" - 6 ⅛"
Inner Diameter: 3"
Outer Diameter: 11 ½"
Thickness: 3 ¼"

Fits many Lawn and Garden models with 12" wheels. Kubota BX Tractors and many more.  Click the more info button.


TF 621 Wheel Weight for John Deere Tractors.
Color:
Yellow

Weight:
525 lbs each
Will Stack

For 30, 40, 50 Series JD Tractors with cast offset wheels.

Number of Mount Holes: 3
Mount Hole Centers:
3@13 ½"
3@16 ½"

Inner Diameter: 13 ½ INCHES
Outer Diameter: 28 ¼ INCHES
Thickness: 6 INCHES


TF 640 Deere Starter Weight
Weight:
140 lbs each
Will Stack

64 kg each.

Number of Mount Holes: 3
Mount Hole Centers: 22 ¼
Inner Diameter: 17 ¾
Outer Diameter: 27 ½
Replaces: R167153


TF 641 Deere Wheel Weight
Weight:
500 lbs each
Will Stack
REF R207782, R167152
227kg each
Number of Mount Holes: 3
Mount Hole Centers: 22 ¼
Inner Diameter: 16 ¾
Outer Diameter: 27 ½
Thickness: 5 ½
Replaces: R207782 and R167152


TF 642 TF 642
Color:
YELLOW

Weight:
800 lbs each
Will Stack
Mount Hole Centers: 3@22 ¼"
Inner Diameter: 14 ½" - 16"
Outer Diameter: 27 ½"
Thickness: 8"

800 pound version of TF 641


TF 643 Wheel Weight for John Deere Full Size Tractors
Color:
Yellow

Weight:
1200 lbs each
Will NOT Stack

Wheel Weight for Full Size Tractors.

Hole Pattern: 3 Holes at 22 ¼ inches
Number of Mount Holes: 3
Inner Diameter: 14 ½ inches to 16 inches
Outer Diameter: 27 ½ inches
Thickness: 11 ¾ inches


TF 650 Wheel Weight for Deere, CNH, others.
Weight:
160 lbs each
Will Stack

72 kg each.

Number of Mount Holes: 3
Mount Hole Centers: 14 ⅝
Inner Diameter: 13
Outer Diameter: 24 ¼
Thickness: 3

Color Matched to Your Brand.


TF 651 Wheel Weight for John Deere Full Size Tractors
Color:
Yellow

Weight:
1500 lbs each
Will NOT Stack

Wheel Weight for Full Size Tractors.

Hole Pattern: 3 HOLES AT 22 ¼ INCHES
Number of Mount Holes: 3
Inner Diameter: 14 ½ INCHES TO 16 INCHES
Outer Diameter: 29 ½ INCHES
Thickness: 13 INCHES


TF 652 Wheel Weight for John Deere Full Size Tractors
Color:
Yellow

Weight:
1700 lbs each
Will NOT Stack

Wheel Weight for Full Size Tractors.

Hole Pattern: 3 HOLES AT 22 ¼ INCHES
Number of Mount Holes: 3
Inner Diameter: 14 ½ INCHES TO 16 INCHES
Outer Diameter: 30 ⅝ INCHES
Thickness: 13 ¾ INCHES


TF 655 Compact Wheel Weight
Color:
WILL MATCH

Weight:
60 lbs each
Will Stack

Wheel Weight for Many Lawn and Garden Tractors.

Number of Mount Holes: 4
Mount Hole Centers: 4@7 ½

60 Pound Wheel Weight for Many Lawn and Garden and Compact Tractors.


TF 657 Deere Factory Type Wheel Weight
Color:
YELLOW

Weight:
1400 lbs each
Will NOT Stack

635 kg each.

Number of Mount Holes: 3
Mount Hole Centers: 22 ¼
Inner Diameter: 12
Outer Diameter: 34
Thickness: 10 ½
Replaces: R167151, R553540


TF 658 Deere Type Compact Wheel Weight
Weight:
56 lbs each
Will Stack

26 kg

Mount Hole Centers: 3@9 ⅞" AND 3@11 ¾"
Inner Diameter: 9 ¼"
Outer Diameter: 15 ¼"
Thickness: 2 ⅛"

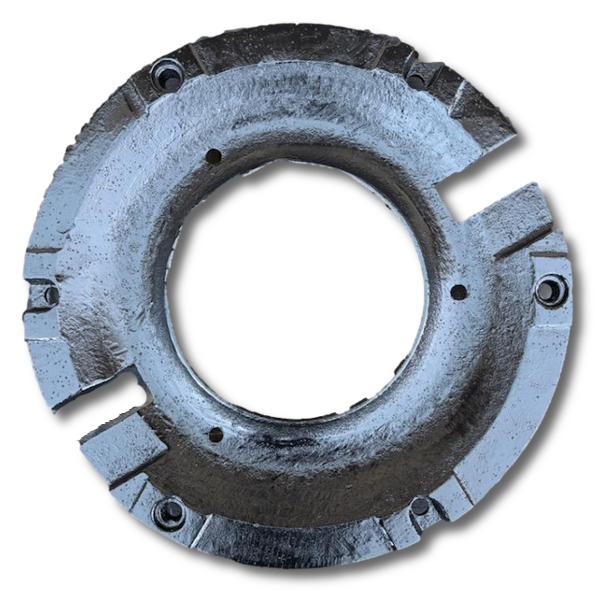

TF 804 Ford New Holland Wheel Weight
Weight:
100 lbs each
Will Stack
Mount Hole Centers: 3 holes at 12 ¾" or 19"
Inner Diameter: 11"
Outer Diameter: 24"
Thickness: 2 ¾"

For many 10 Series, 40 Series, "S" series, TT-TB, TS, and TV models.


TF 820 Wheel Weight
Color:
COLOR MATCHED

Weight:
43 lbs each

Front Wheel Weights

Mount Hole Centers: 4 @ 7 ½"
Inner Diameter: 4 ⅜"
Outer Diameter: 15 ½"
Thickness: 3 ½"
Replaces: 79018840, 83970501, SBA37211076, C5NN-1N000-A

Agco, CaseIH, Challenger, Ford, John Deere, Kubota, Massey Ferguson, New Holland


TF 821 Wheel Weights for CNH and others.
Weight:
300 lbs each
Will Stack

136kg each

Mount Hole Centers: 12 ¾ and 10 ¾
Inner Diameter: 10 ½
Outer Diameter: 21 ½


TF 8233 Wheel Weight, Cub Cadet, Yanmar, others
Weight:
101 lbs each
Will Stack

46 kg each.

Number of Mount Holes: 3,4
Mount Hole Centers: 3@8" and 4@ 7 ½ - 8 ½
Inner Diameter: 7 ½
Outer Diameter: 16 ⅝
Thickness: 3 ½
Replaces: 79018826 and others.

Fits many CNH, Cub Cadet, Yanmar, and others.


TF 825 New Holland Wheel Weight
Color:
Will Match

Weight:
600 lbs each
Will NOT Stack

600 Pound Wheel Weight

Number of Mount Holes: 3
Mount Hole Centers: 3@15 ⅝

New Holland and others.  We also have a 1200 pound version (TF 826) available.


TF 826 New Holland Whel Weight
Color:
Will Match

Weight:
1200 lbs each
Will NOT Stack

1200 Pound Wheel Weight

Number of Mount Holes: 3
Mount Hole Centers: 15 ⅝"

New Holland and others.


TF 830 Wheel Weight for CNH and others.
Weight:
110 lbs each
Will Stack

49 kg each.

Number of Mount Holes: 3
Mount Hole Centers: 14 or 12 ¾
Inner Diameter: 10 ¼
Outer Diameter: 19 ¾
Thickness: 2 ¾
Replaces: 79018833, 47131052, 5093512, 5113181


v11
